Home & Backup Power
Home Inverter
Pure sine and square wave home inverters from 700 VA to 1650 VA, with ChargeSense charging and a 3-year warranty.
- Rating
- 700 VA – 1650 VA
- Output waveform
- Pure sine (CSW series), square (CSQ series)
Custom & private-label
Home & Backup Power
Tubular Inverter Battery
Long, Extra Long and Ultra Long Lasting tubular batteries from 100 Ah to 260 Ah, with warranties up to 60 + 24 months.
- Capacity
- 100 Ah – 260 Ah
- Nominal voltage
- 12 V
- Tiers
- Long, Extra Long and Ultra Long Lasting
- Warranty
- 24 + 24, 36 + 24 or 60 + 24 months (free replacement + pro-rata)
- Custom ratingsSpecs & finishes to order
- Private labelYour brand & packaging
- OEM supplyFor OEMs & distributors
Key Features
What sets the Tubular Inverter Battery apart.
01
DuraGrid thick-grid, double-pasted plates
02
Non-woven gauntlet around every tubular plate
03
Leak-resistant, high-impact polypropylene container
04
Flame-arrestor vent plugs
05
Three warranty tiers up to 60 + 24 months
06
Four shapes for every space
Overview
About This Product

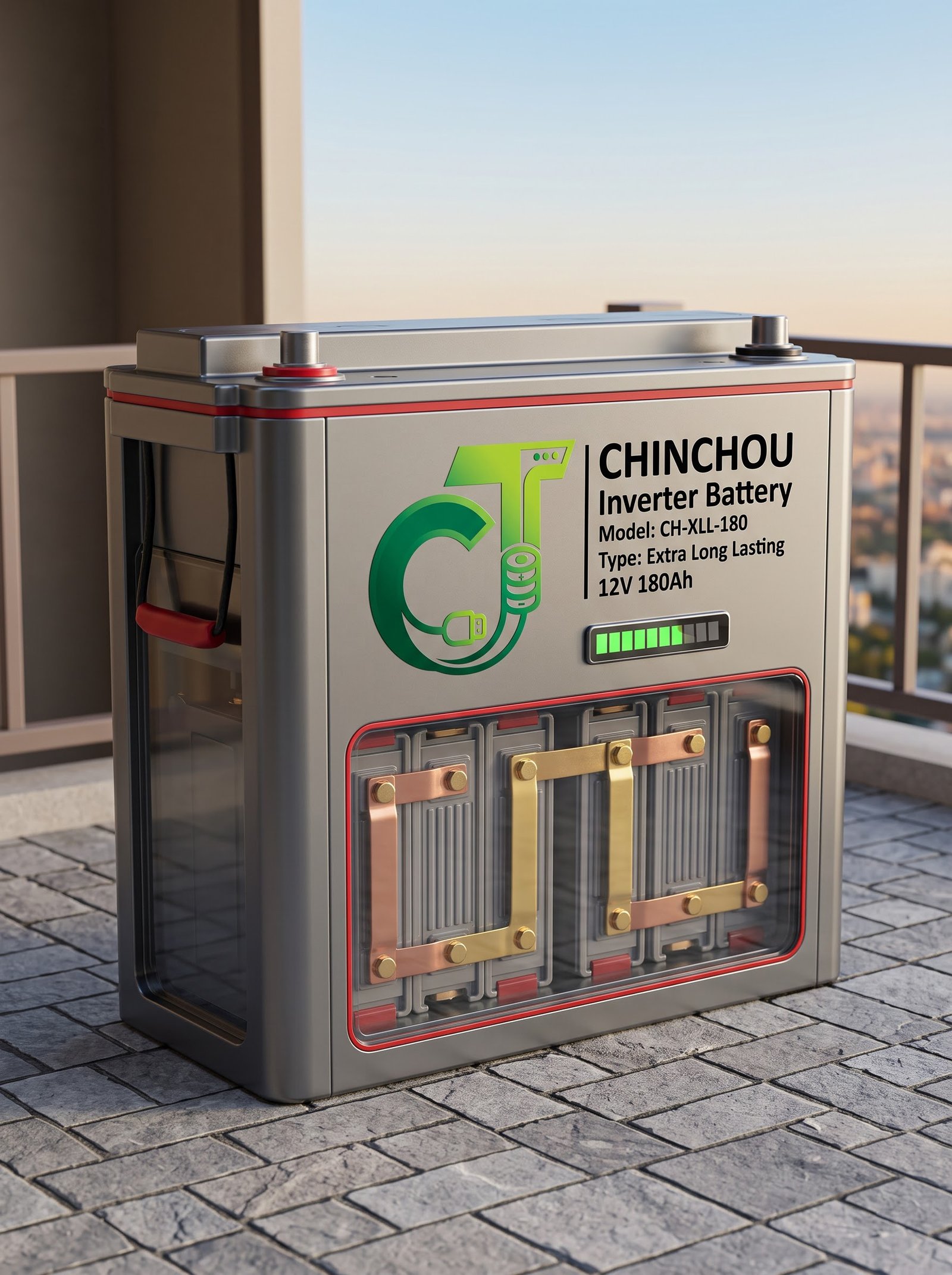

Batteries built to last through every power cut
A power cut always arrives at the wrong moment. Chinchou inverter batteries are built to keep your lights, fans, router and television running for hours. DuraGrid plates are designed to hold active material longer, non-woven gauntlets protect each tubular plate, and a tough leak-resistant container keeps the battery safe and tidy. Available from 100 Ah to 260 Ah in four shapes, so there is a fit for every space and every backup need.
Choose your tier
| Long Lasting | Extra Long Lasting | Ultra Long Lasting | |
|---|---|---|---|
| Warranty (free replacement + pro-rata) | 24 + 24 months | 36 + 24 months | 60 + 24 months |
| Best for | Regular homes with occasional cuts | Homes with frequent cuts | Long, daily outages and heavy use |
| Position | Smart value | Balanced choice | Maximum peace of mind |
| Capacities | 100, 120, 150, 200 Ah | 100, 135, 150, 200 Ah | 150, 200, 220, 260 Ah |
- Chinchou Long Lasting: dependable tubular power for everyday backup, with DuraGrid plates and low maintenance.

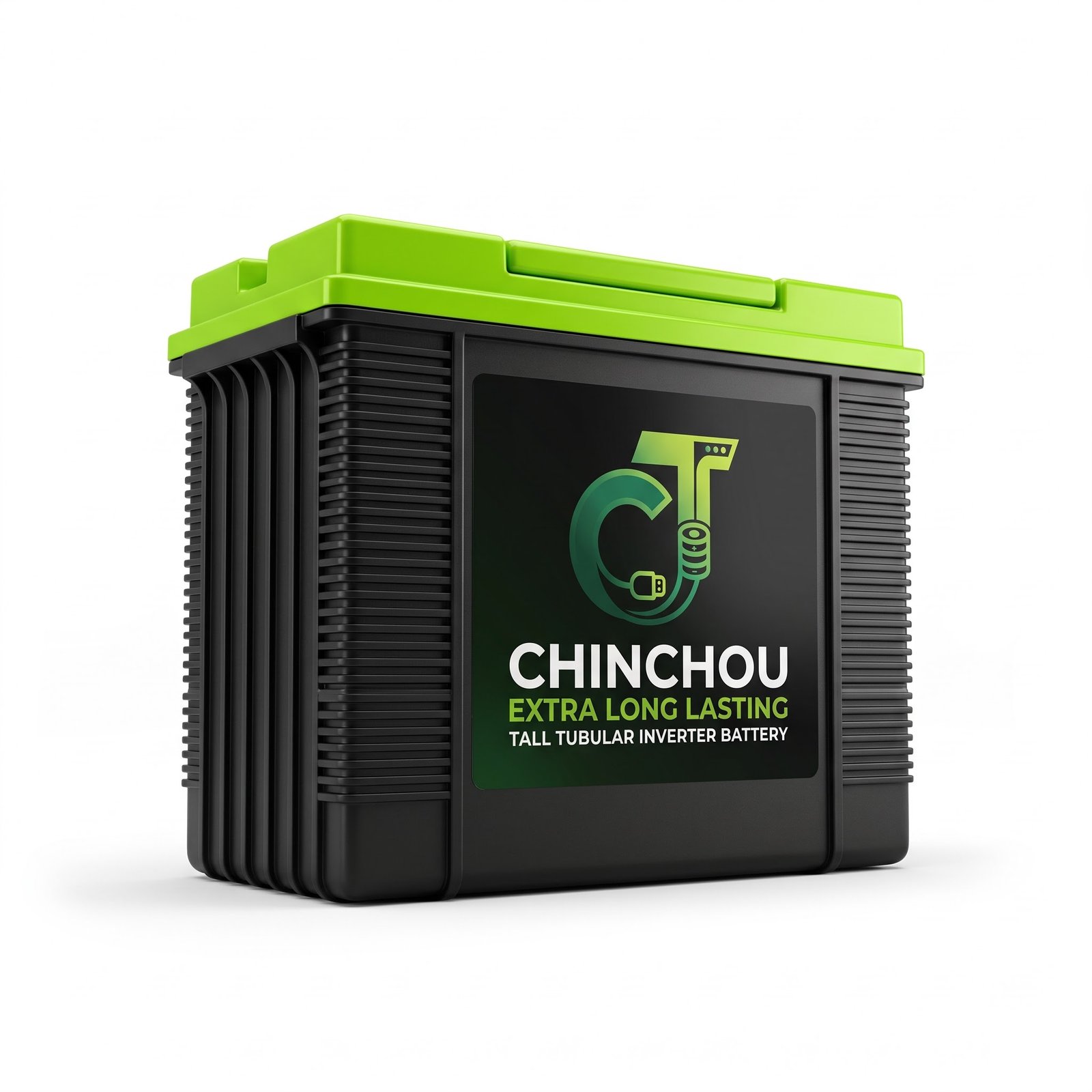

- Chinchou Extra Long Lasting: more life, more confidence, for homes where power cuts are frequent.
- Chinchou Ultra Long Lasting: our longest-life battery for long, regular outages, with our strongest plate design.
Choose your shape
| Shape | Capacity range | Why choose it |
|---|---|---|
| Short Tubular | 100 to 135 Ah | Compact, for limited space and short-to-moderate cuts |

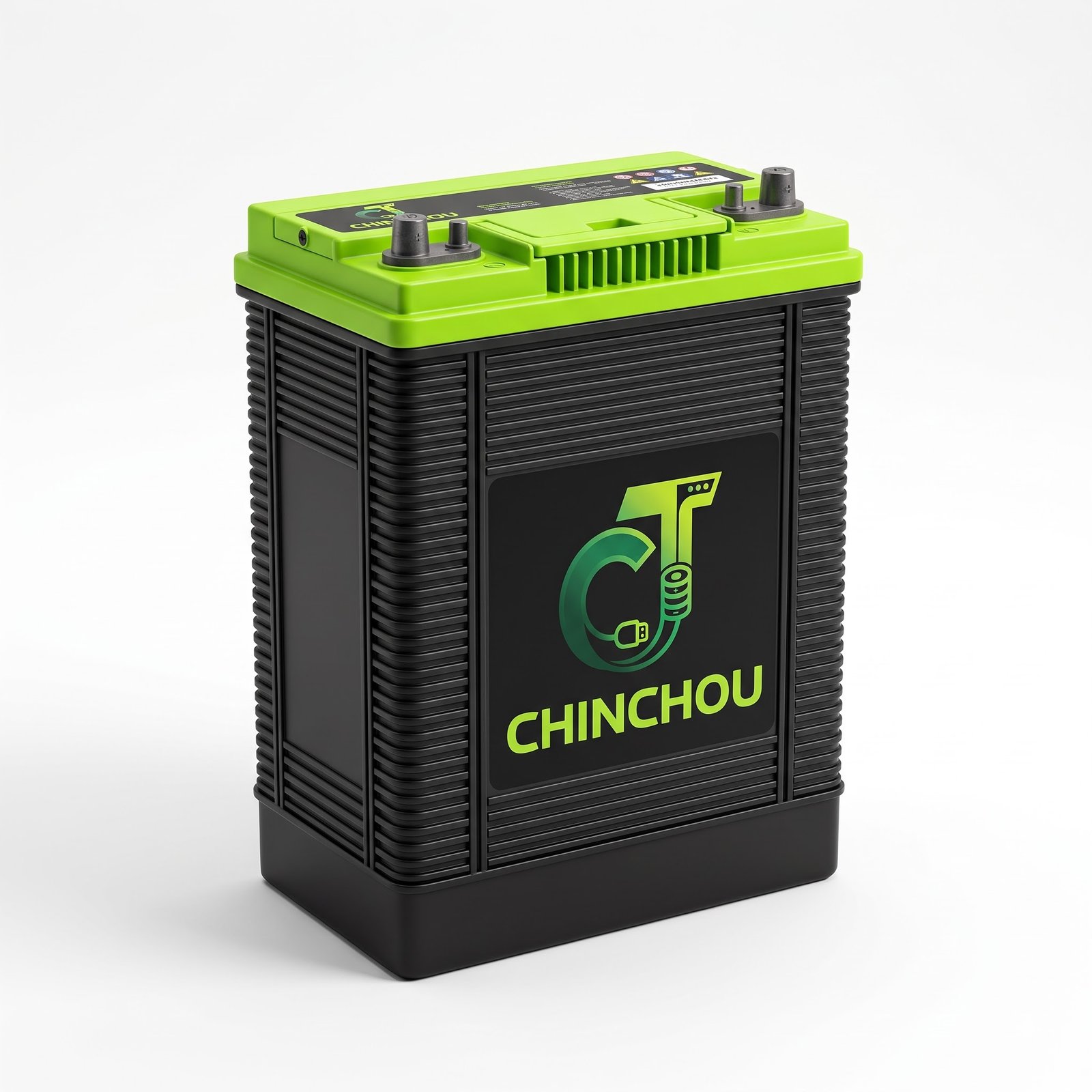

| Tall Tubular | 150 to 260 Ah | Highest capacity and longest backup for frequent or long cuts |
| Short Tall Tubular | 120 to 150 Ah | A middle path where height is limited but capacity is needed |
| Short Tubular Jumbo | 150 to 220 Ah | Extended backup in a low, compact footprint |
Capacity guide
| Capacity | Typical shape | Dimensions L × W × H (mm) | Weight (approx.) | Backup at 300 W* |
|---|---|---|---|---|
| 100 Ah | Short tubular | 520 × 218 × 290 | 30 kg | 2.8 hours |
| 120 Ah | Short tall | 505 × 190 × 370 | 36 kg | 3.4 hours |
| 150 Ah | Tall / short tall | 505 × 190 × 405 | 45 kg | 4.2 hours |
| 200 Ah | Tall | 505 × 222 × 410 | 59 kg | 5.6 hours |
| 220 Ah | Tall / short jumbo | 505 × 222 × 440 | 65 kg | 6.2 hours |
| 260 Ah | Tall | 505 × 270 × 410 | 77 kg | 7.3 hours |
*Illustrative only: 12 V, about 70% usable energy after inverter losses, 300 W continuous load. Real backup varies with battery age, temperature and load.
Frequently asked questions
How long does an inverter battery last?
A well-maintained tubular battery typically lasts 5 to 6 years, depending on usage, depth of discharge, temperature and maintenance.
How do I check battery health?
Look for slow charging, reduced backup and inverter warning indicators. A technician can test voltage and specific gravity.
How do I maintain it?
Keep it ventilated and shaded, top up with distilled water when needed, keep terminals clean, and avoid frequent deep discharges.
Which shape should I buy?
Tall tubular gives the most backup; choose short or short tall where space or height is limited.
Can I mix old and new batteries?
No. Batteries in one bank should be the same model, capacity and age.
Colours, features and specifications are subject to change without prior notice. Images are representative and for illustration only. Contact Chinchou for current specifications.
Need a variant built to your spec?
Custom ratings, finishes, form factors and private-label packaging are available on request. Attach drawings or a BOM with your enquiry.
Discuss a custom buildDatasheet
Technical Specifications
Tubular Inverter Battery
12 parameters
- Capacity
- 100 Ah – 260 Ah
- Nominal voltage
- 12 V
- Tiers
- Long, Extra Long and Ultra Long Lasting
- Warranty
- 24 + 24, 36 + 24 or 60 + 24 months (free replacement + pro-rata)
- Type
- Flooded tubular lead-acid, low maintenance
- Capacity rating
- C10 (10-hour rate)
- Positive plates
- Tubular with non-woven gauntlet, DuraGrid alloy grid
- Container
- High-impact polypropylene copolymer, leak-resistant
- Vent plugs
- Flame-arrestor type
- Water top-up
- Distilled water only, as needed (typically every few months)
- Design life
- Up to 5 to 6 years with proper use and maintenance (typical)
- Operating temperature
- 0 – 50 °C
Need different values? Every parameter can be tailored.
Request custom spec
Request a quote
Get Pricing For This Product
Share your specification — our engineers will come back with what's possible, timelines and pricing.
Home & Backup Power
Tubular Inverter Battery
- 1 Share your requirementRatings, volumes, target market — and any drawings or datasheets.
- 2 Our engineers review itWe confirm what is possible for your application and standard.
- 3 Receive your quoteWith pricing, options and production timelines.
