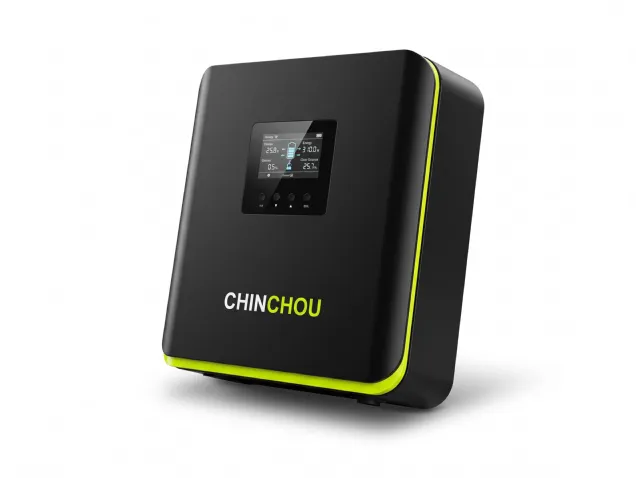

Home Inverter
Pure sine and square wave home inverters from 700 VA to 1650 VA, with ChargeSense charging and a 3-year warranty.
- Rating
- 700 VA – 1650 VA
- Output waveform
- Pure sine (CSW series), square (CSQ series)
Custom & private-label
Popular
Home & Backup Power

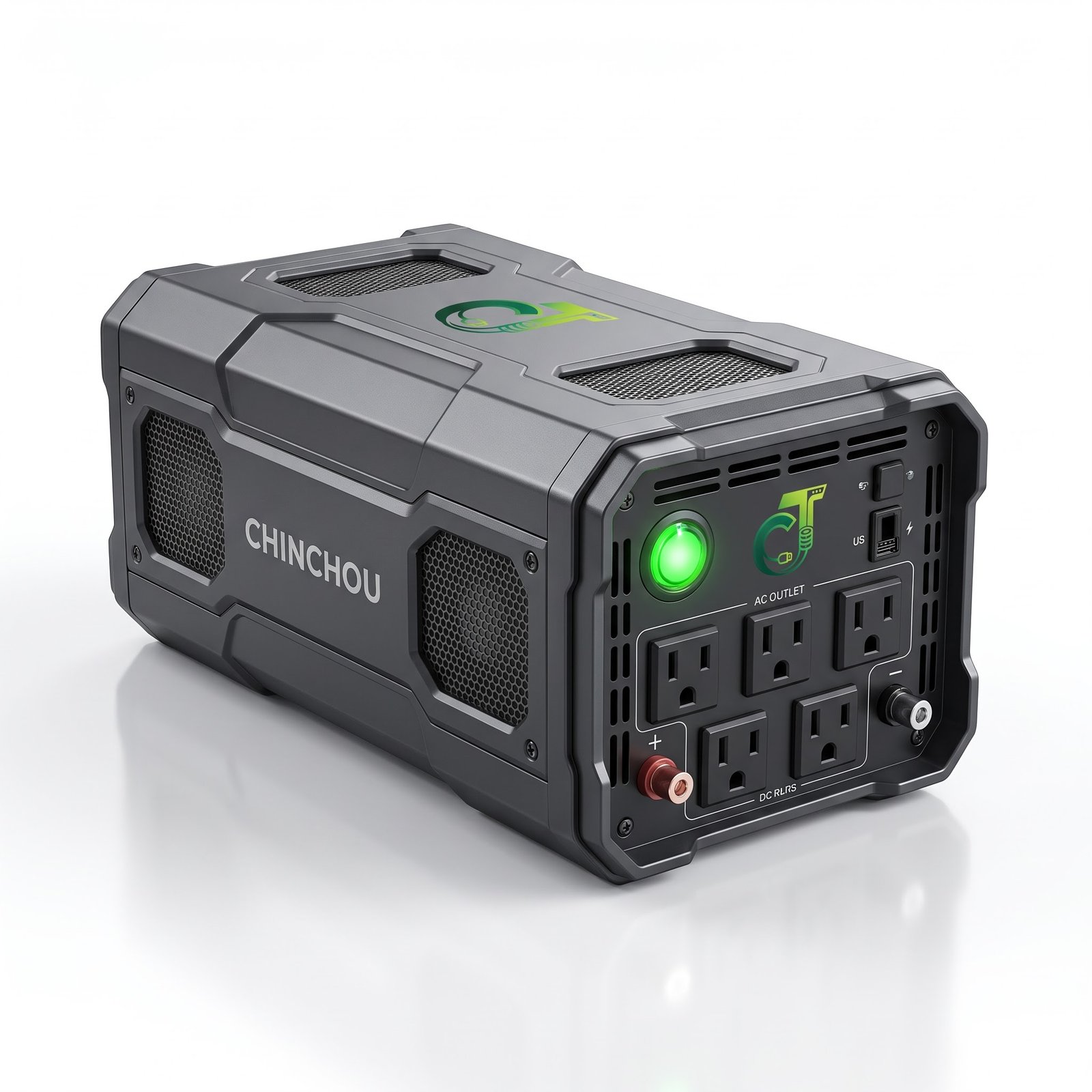

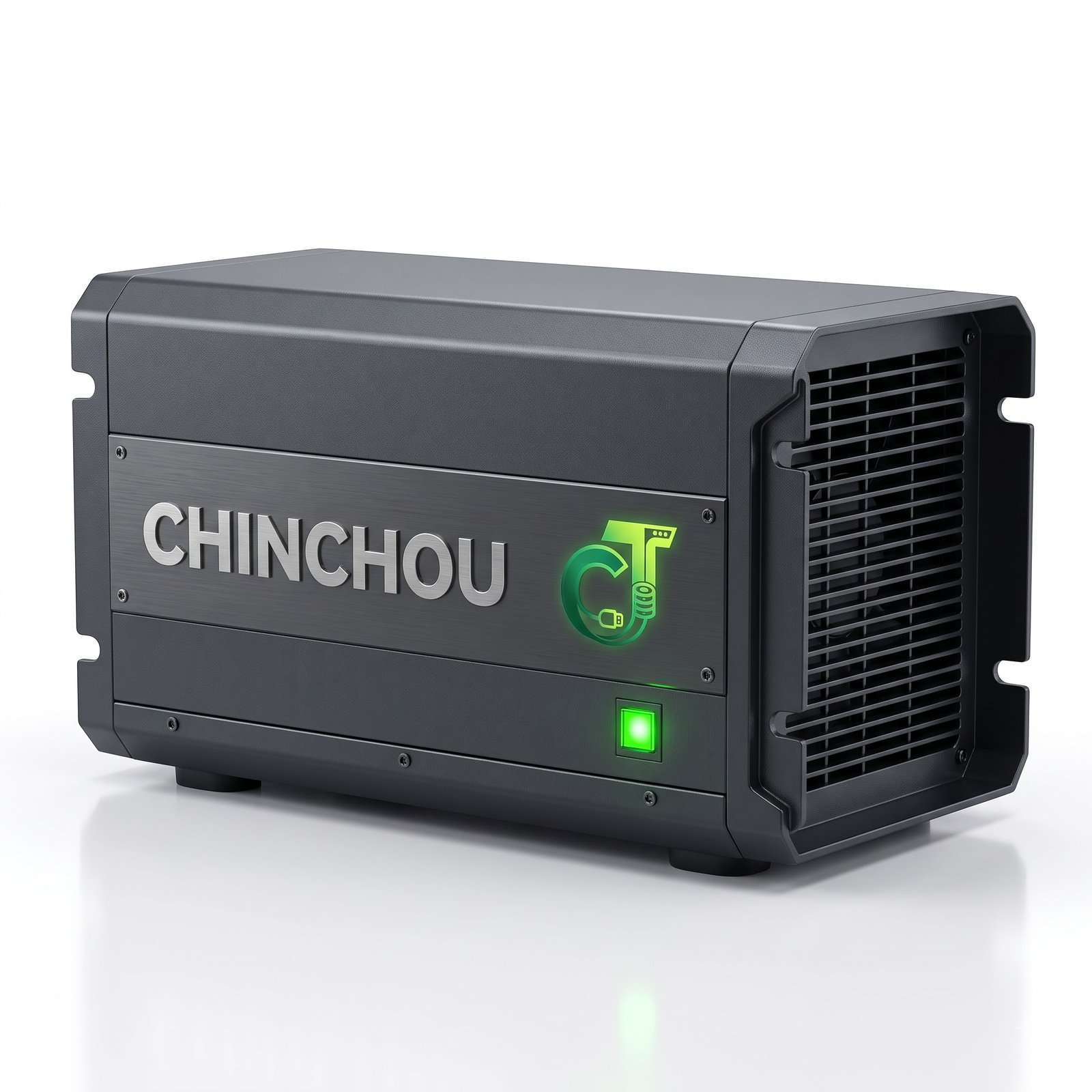

High Capacity Inverter
2000 VA to 5000 VA sine wave inverters for large homes, clinics, shops and offices.
- Rating
- 2000 VA – 5000 VA
- Output waveform
- Pure sine (CHK series), square (CHQ series)
- System voltage
- 24 V / 36 V / 48 V
- Warranty
- 2 years (sine wave), 3 years (square wave)
- Custom ratingsSpecs & finishes to order
- Private labelYour brand & packaging
- OEM supplyFor OEMs & distributors
Key Features
What sets the High Capacity Inverter apart.
01
Runs refrigerators, pumps, printers and inverter ACs
02
LiveView LCD shows load, battery and backup time
03
TriShield dual-MCB protection
04
PowerFlow MOSFET-based PWM design
05
ChargeSense charging for longer battery life
06
DeepSafe deep-discharge cut-off
07
24 V, 36 V and 48 V battery banks
Overview
About This Product
Power for heavy-duty appliances
Some places cannot afford to pause: a clinic with a dental chair, a shop with printers and a photocopier, an office with several computers, or a large home with a refrigerator, water pump and air conditioner. Chinchou high-capacity inverters deliver 2000 VA to 5000 VA of clean sine wave power, protect the battery bank with DeepSafe cut-off, and keep going through long outages.
Home or High Capacity?
| High Capacity Inverter | Home Inverter | |
|---|---|---|
| Power | Commercial, clinic, shop and large-home loads | Basic household loads |
| Typical loads | AC, printers, photocopiers, water pumps, dental chair, workshop tools | Fans, lights, TV, laptop, refrigerator, mixer |
| Expandability | Higher battery banks (24 V, 36 V, 48 V) | Single battery or 24 V pair |
| Technology | ChargeSense, DeepSafe, dual MCB, LiveView LCD | ChargeSense, ThermoGuard, LED display |
Model range
| Model | Rating | Continuous load (approx.) | System voltage | 12 V batteries | Dimensions L × W × H (mm) | Warranty |
|---|---|---|---|---|---|---|
| CHK2000 | 2000 VA | 1600 W | 24 V | 2 | 275 × 320 × 275 | 2 years |
| CHK2500 | 2500 VA | 2000 W | 24 V | 2 | 275 × 320 × 275 | 2 years |
| CHK3500 | 3500 VA | 2800 W | 36 V | 3 | 275 × 350 × 375 | 2 years |
| CHK4000 | 4000 VA | 3200 W | 48 V | 4 | 275 × 350 × 375 | 2 years |
| CHK5000 | 5000 VA | 4000 W | 48 V | 4 | 275 × 410 × 475 | 2 years |
| CHQ2000 (square wave) | 2000 VA | 1600 W | 24 V | 2 | 360 × 330 × 420 | 3 years |
- CHK2000: 2000 VA pure sine wave for large homes and small shops, with a LiveView LCD and dual MCB protection.
- CHK2500: 2500 VA for heavier loads including pumps and printers, with DeepSafe battery protection.
- CHK3500: 3500 VA for medium commercial spaces. High efficiency and long backup with a 36 V bank.
- CHK4000: 4000 VA built for big setups. Runs multiple heavy appliances with a 48 V bank.
- CHK5000: our top model at 5000 VA for extended use in large homes and commercial spaces.
- CHQ2000: square wave 2000 VA in a bigger cabinet for motors, fans and lights at a lower cost.
Planning guide
| Model | Typical use |
|---|---|
| CHK2000 / CHQ2000 | Large home, small clinic or shop: refrigerator, fans, lights, pump, computer, printer |
| CHK2500 | Home or office with a small inverter air conditioner plus essentials (check start-up current) |
| CHK3500 | Medium commercial space, several computers, printer and photocopier |
| CHK4000 / CHK5000 | Large homes, showrooms and offices with many loads, or pump and AC combined |
Frequently asked questions
Can I run a refrigerator on a high-capacity inverter?
Yes, as long as the inverter rating covers the refrigerator's running and start-up load.
Can it run an air conditioner?
Yes, depending on the tonnage. Choose a model that covers the compressor's start-up surge, and ask our team to check your AC model.
What happens if I overload it?
The MCB trips. Reduce the load to the rated capacity and switch the MCB back on.
How many batteries do I need?
24 V models use two 12 V batteries, 36 V models three, and 48 V models four, all of the same type and age.
Which waveform should I choose?
Sine wave for computers, medical or office equipment and compressors; square wave only for simple motors, fans and lights.
Do you offer 110 V or 60 Hz versions?
Yes, for export orders. Ask us about OEM and private-label options.
Colours, features and specifications are subject to change without prior notice. Images are representative and for illustration only. Contact Chinchou for current specifications.
Need a variant built to your spec?
Custom ratings, finishes, form factors and private-label packaging are available on request. Attach drawings or a BOM with your enquiry.
Discuss a custom buildDatasheet
Technical Specifications
High Capacity Inverter
14 parameters
- Rating
- 2000 VA – 5000 VA
- Output waveform
- Pure sine (CHK series), square (CHQ series)
- System voltage
- 24 V / 36 V / 48 V
- Warranty
- 2 years (sine wave), 3 years (square wave)
- Changeover time
- 20 ms or less
- Efficiency
- 88% or higher
- Mains input range
- 90 – 290 V AC wide-range mode, 50 Hz (60 Hz export variant)
- Output voltage
- 230 V AC (110 V and 220 V export variants)
- Battery compatibility
- Tubular, flat plate and VRLA 12 V batteries in series; lithium with matching settings
- Surge capability
- Rides through compressor start-up surge for matched loads
- Protections
- Dual MCB, overload, short circuit, reverse polarity, deep-discharge cut-off, over-temperature, mains over/under-voltage
- Display
- Interactive LCD (LiveView)
- Cooling
- Temperature-controlled fan
- Operating temperature
- 0 – 45 °C
Need different values? Every parameter can be tailored.
Request custom spec
Request a quote
Get Pricing For This Product
Share your specification — our engineers will come back with what's possible, timelines and pricing.
Home & Backup Power
High Capacity Inverter
- 1 Share your requirementRatings, volumes, target market — and any drawings or datasheets.
- 2 Our engineers review itWe confirm what is possible for your application and standard.
- 3 Receive your quoteWith pricing, options and production timelines.
More Home & Backup Power
Other products in this range you may want to compare.
Home & Backup Power

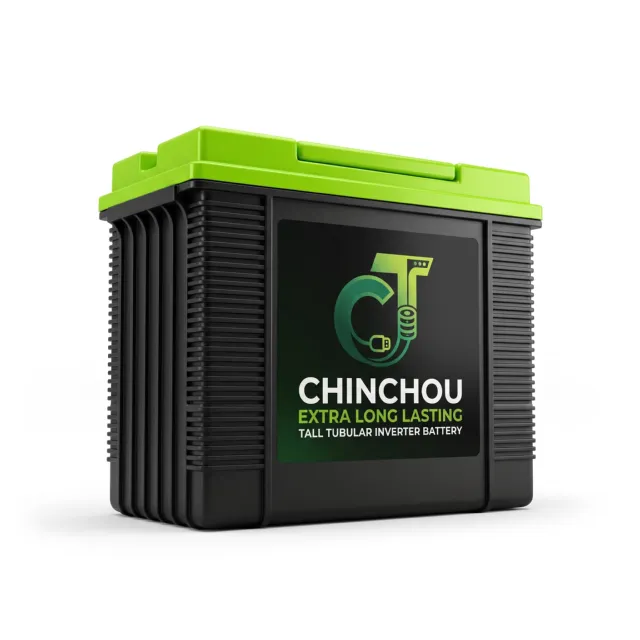

Tubular Inverter Battery
Long, Extra Long and Ultra Long Lasting tubular batteries from 100 Ah to 260 Ah, with warranties up to 60 + 24 months.
- Capacity
- 100 Ah – 260 Ah
- Nominal voltage
- 12 V
Home & Backup Power

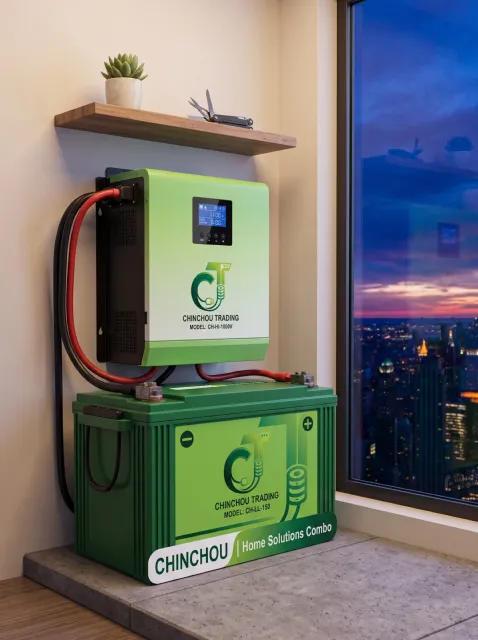

Inverter & Battery Combo
