Home & Backup Power
Home Inverter
Pure sine and square wave home inverters from 700 VA to 1650 VA, with ChargeSense charging and a 3-year warranty.
- Rating
- 700 VA – 1650 VA
- Output waveform
- Pure sine (CSW series), square (CSQ series)
- System voltage
- 12 V / 24 V
- Warranty
- 3 years
- Custom ratingsSpecs & finishes to order
- Private labelYour brand & packaging
- OEM supplyFor OEMs & distributors
Key Features
What sets the Home Inverter apart.
01

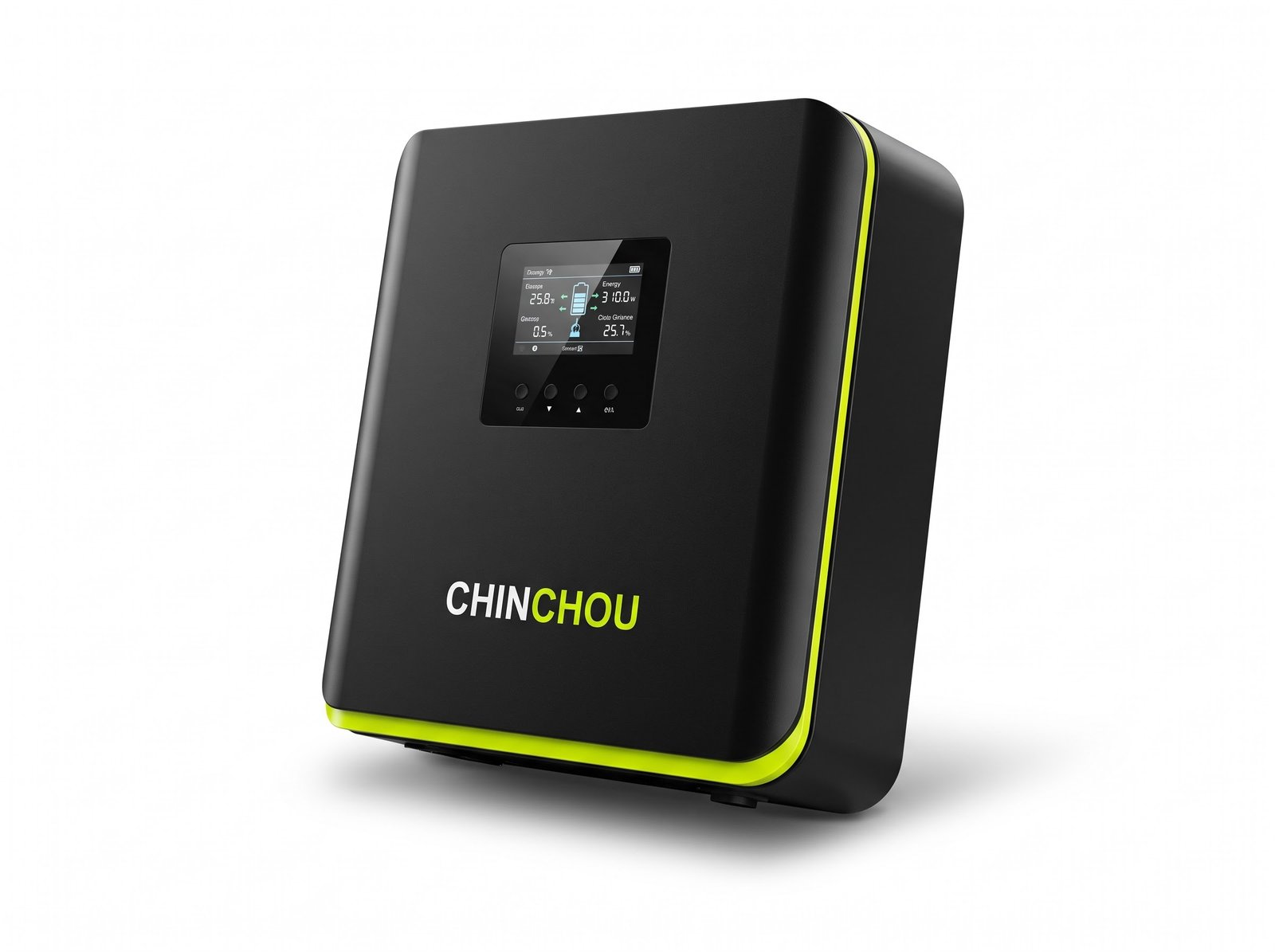

New Edge design with LiveView status display
02
ChargeSense smart charging, no overcharging
03
ThermoGuard dual temperature sensors
04
Switches over in 20 ms or less
05
Works with tubular, flat plate, VRLA and lithium batteries
06
3-year assured warranty
Overview
About This Product
Smart inverters for a limitless home
Clean sine wave power, intelligent charging and a long warranty, so a power cut never stops your day. Chinchou home inverters switch to battery power within milliseconds of a cut, deliver smooth output that protects sensitive appliances, and use ChargeSense to charge your battery the way it needs, which helps it last longer. Choose pure sine wave for full-home comfort or square wave for simple fans, lights and motors.
Choose your inverter
| Sine wave (CSW) | Square wave (CSQ) | |
|---|---|---|
| Best for | Computers, laptops, refrigerators, ovens, TVs and everything else | Fans, lights, motors and basic loads |
| Output | Smooth, clean waveform close to grid power | Simple stepped waveform |
| Appliance safety | Gentle on sensitive electronics, quieter running | Suited to simple appliances |
| Capacity | 700 VA to 1500 VA | 1100 VA to 1650 VA |
| Warranty | 3 years | 3 years |
Pure sine wave models (CSW series)
| Model | Rating | Continuous load (approx.) | System voltage | Dimensions L × W × H (mm) |
|---|---|---|---|---|
| CSW700 | 700 VA | 560 W | 12 V | 275 × 297 × 123 |
| CSW900 | 900 VA | 720 W | 12 V | 361 × 345 × 177 |
| CSW1100 | 1100 VA | 880 W | 12 V | 361 × 345 × 177 |
| CSW1500 | 1500 VA | 1200 W | 24 V | 380 × 340 × 190 |
Square wave models (CSQ series)
| Model | Rating | System voltage | Dimensions L × W × H (mm) |
|---|---|---|---|
| CSQ1100 | 1100 VA | 12 V | 360 × 300 × 160 |
| CSQ1650 | 1650 VA | 24 V | 380 × 320 × 180 |
- CSW700: pure sine wave backup for small homes and apartments. Quiet, compact and protected by ThermoGuard.
- CSW900: pure sine wave power for everyday homes. Runs fans, lights, TV and laptops cleanly, with ChargeSense charging.
- CSW1100: more headroom for a growing household. Smooth sine wave output and a LiveView display.
- CSW1500: our largest home sine wave inverter. Handles refrigerators and mixed loads for long outages.
- CSQ1100: reliable square wave backup for fans, lights and motors at an economical price.
- CSQ1650: high-capacity square wave backup for larger homes with motor loads.
What each model can run
| Model | Typical backup load |
|---|---|
| CSW700 | 2 to 3 fans, 4 to 6 LED lights, Wi-Fi router, TV |
| CSW900 / CSW1100 | 3 to 4 fans, lights, TV, laptop, router, small mixer |
| CSW1500 | Fans, lights, TV, refrigerator and basic kitchen appliances |
| CSQ1100 / CSQ1650 | Fans, lights and motors (not for sensitive electronics) |
Frequently asked questions
What is a sine wave inverter?
It produces a smooth, grid-like output, which is gentler on computers, TVs, refrigerators and other electronics than a square wave.
How do I choose the inverter size?
Add up the watts of the appliances you want to run during a cut, then divide by about 0.7 to 0.8 to get the VA rating, and leave some margin.
Which battery should I pair it with?
A tubular battery matched to the inverter's system voltage. See our Inverter & Battery Combos for pre-matched pairs.
Can one inverter run a refrigerator?
Yes, if its rating covers the refrigerator's start-up surge. The CSW1500 is recommended for that.
How should I look after it?
Keep it in a ventilated, dry place, avoid direct sun, keep it dust-free, and avoid running it at full load all the time.
Can Chinchou supply private-label or export versions?
Yes. Ask us about OEM branding, 110 V / 220 V / 60 Hz variants and custom packaging.
Colours, features and specifications are subject to change without prior notice. Images are representative and for illustration only. Contact Chinchou for current specifications.
Need a variant built to your spec?
Custom ratings, finishes, form factors and private-label packaging are available on request. Attach drawings or a BOM with your enquiry.
Discuss a custom buildDatasheet
Technical Specifications
Home Inverter
14 parameters
- Rating
- 700 VA – 1650 VA
- Output waveform
- Pure sine (CSW series), square (CSQ series)
- System voltage
- 12 V / 24 V
- Warranty
- 3 years
- Changeover time
- 20 ms or less
- Efficiency
- 85% or higher (inverter mode)
- Mains input range
- 170 – 280 V AC, 50 Hz (60 Hz export variant)
- Output voltage
- 230 V AC (110 V and 220 V export variants)
- Battery types
- Tubular, flat plate, VRLA; lithium with matching settings
- Charging
- ChargeSense, current-limited, overcharge cut-off
- Protections
- Overload, short circuit, reverse polarity, low-battery cut-off, over-temperature, mains over/under-voltage
- Display
- LED indicators (LiveView LCD on premium models)
- Cooling
- Fan-assisted, thermostat controlled
- Operating temperature
- 0 – 45 °C
Need different values? Every parameter can be tailored.
